Module: 3 | Teeth: 50

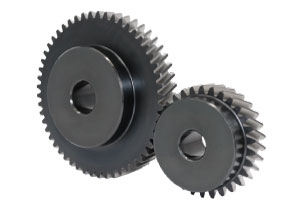

Please note: All products are sold individually, even if the image shows multiple items
Module: 3 | Teeth: 50
Subject to availability from the Manufacturer
Buy KHG3-50R | Spur Gears
Technical Specification:
KHG3-50R
Precision Grade
JIS N6
Gear Teeth
Ground
Heat Treatment
Thermal Refined, Teeth Induction Hardened
Pressure Angle
20°
Tooth Hardness
50 - 60HRC
Helix Angle
21°30'
| Mat | Chromoly Steel |
| Module | 3 |
| Teeth | 50 |
| Pitch | 150 |
| Bore | 30 |
| Bore2 | 30 |
| Bend | 634.8 |
| Surf | 1094 |
| Tooth | High Precision |
| Keyway | - |
| Heat Treatment | Yes |
| Reference Section of Gear | Rotating plane |
| Num | 50 |
| Helix | Right |
| TotalLength | 41 |
| Backlash | 0.14 - 0.24 |
| Weight | 3.95 |
